Fabrication capabilities

Proven fabrication range.

Ceiling girders, columns, FGD steelwork, welded beams and air and gas path assemblies—built to drawing. Tap a marker on the image for construction detail.

Ceiling girders structural fabrication reference visual

Product 01 of 09

Power structures

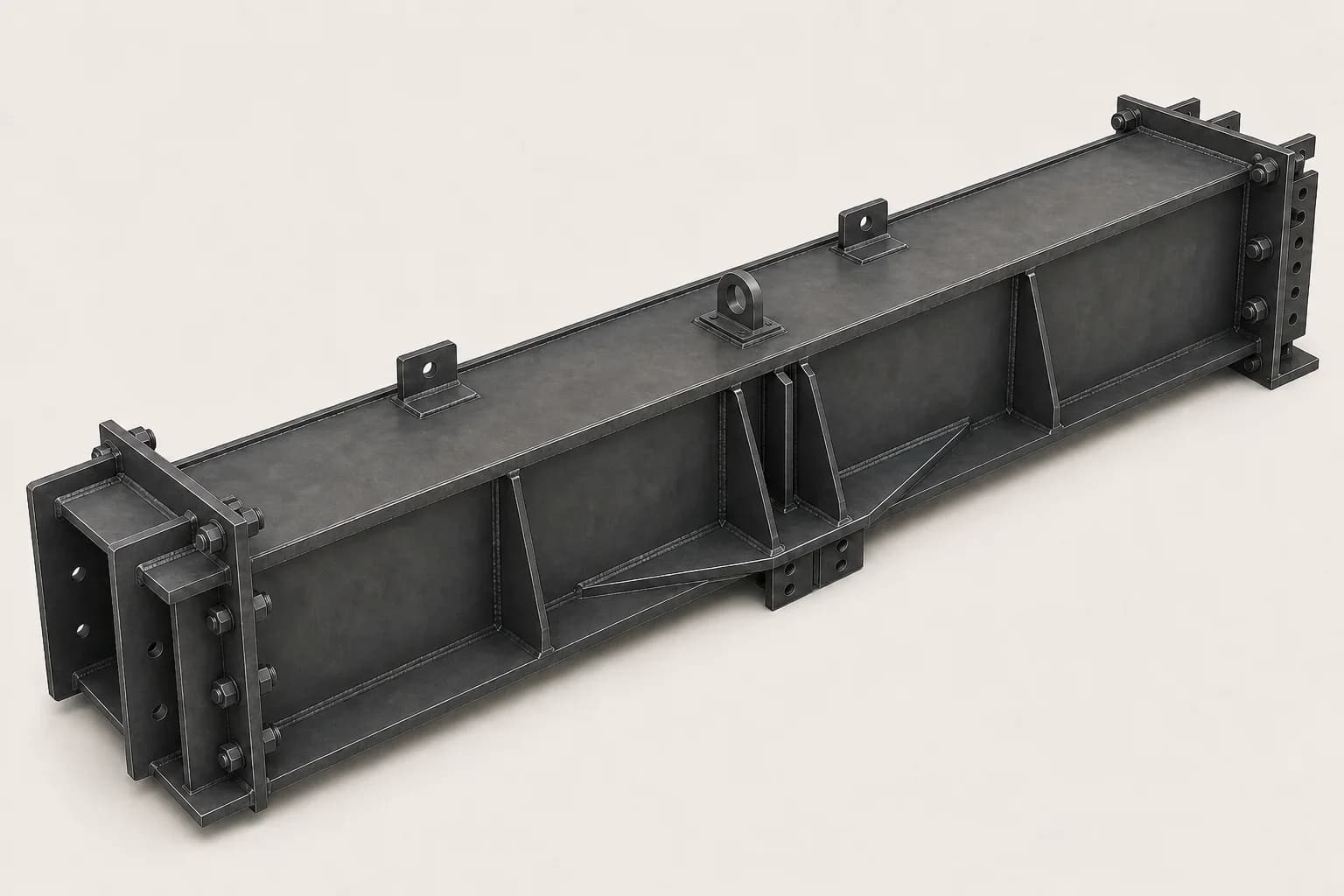

Ceiling girders

Material: IS 2062 E250 BR
Size range: Up to 12 m, 155 mm plate
Weld process: SAW to WPS
Application: Boiler ceiling support

0+Years of experience

0.0Acre facility

0 MTE.O.T. crane capacity

ISO9001:2015 certified

How an order moves through the shop

From drawing to dispatch.

Drawing & material

Fabrication drawings, material test certificates and weld procedures are checked against the order before cutting starts.

Cut & roll

Plate is profiled and formed on site — cutting up to 155 mm, rolling up to 50 mm.

Fit-up & weld

Components are fitted and welded to procedure, including submerged arc welding up to 1,200 Amps.

Inspect & test

Dimensions, welds and NDT are checked against the drawing at the required hold points.

Coat & dispatch

Surface preparation, coating and match-marking are completed before loadout, moved by 60 MT E.O.T. crane.
